Guide To Flash / Bricked - Bootloop LG JOY / KITE H220 - H221G - H222F - H222TTV with Original Stock ROM Using LG Flash Tool (KDZ method).

Flash / Install Firmware LG JOY / KITE H220 - H221G - H222F - H222TTV. LG JOY / KITE H220 - H221G - H222F - H222TTV is the android smartphone which announced in February 2015, and excatly released on 2015, May. Guidebelajar on this guide will explain to you how to flashing android device on LG JOY / KITE H220 - H221G - H222F - H222TTV  with easy and simple step. Flashing in android is the same way like fresh install on the windows PC, So by perform a flash on Android you will give a new performance like a new phone. One reason that you should perform a flash your android is because your android get bootloop or when you failed to install Stock R OM Mod.

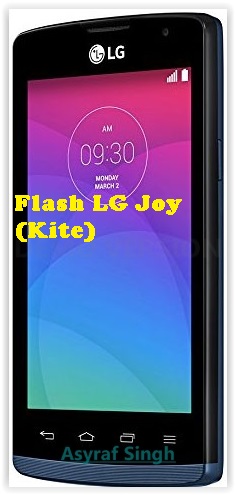

This LG JOY / KITE H220 - H221G - H222F - H222TTV is the smartphone with 4,0 Inchi wide LCD, work on Android OS, v4.4 (KitKat) and supported with Quad-core 1,2 GHz Cortex A7 CPU, QQualcomm MSM8210 Snapdragon 200 Chipset, combined with 512 MB of RAM and 5 MP of  Main camera and VGA on secondary camera.

Flash / Bricked - Bootloop LG JOY / KITE H220 - H221G - H222F - H222TTV

Some problem on this android is bootloop. Do you know what is bootloop, Ok.. now I will explain to you what si bootloop. Some people say that bootloop is a problem that occured on an android system which the android system could not start up going to the homescreen menu. And its happened is automatically return to the initial state on the first time when you turn on the LG JOY / KITE H220 - H221G - H222F - H222TTV. And the device will stop to display on the smartphone logo.

So, If you have any problems on LG JOY / KITE H220 - H221G - H222F - H222TTV bootloop or accidental LG JOY / KITE H220 - H221G - H222F - H222TTV is not installed recovery. In this guide Im not offering recovery twrp or Cwm. CMW is a recovery that already in recovery mode for customization of the device such that the LG JOY / KITE H220 - H221G - H222F - H222TTV with a variety of additional functions in it such as backup / restore, installations and others that are not contained in the standard recovery mode. Generally, in case of a default recovery bootloop LG JOY / KITE H220 - H221G - H222F - H 222TTV will go missing in case of bootloop. whereas the original recoery can not help when there hardbrick.

Now, follow the isntruction list bellow, do it with your own risk.

Requirement Tool For Flash LG JOY / KITE H220 - H221G - H222F - H222TTV.

Before you perform flash or install your firmware on LG JOY / KITE H220 - H221G - H222F - H222TTV,

you must download all requirement tool below ;

1. Download Stock Rom LG JOY / KITE H220 - H221G - H222F - H222TTV  : Here,&nb sp;
• This Stock is KDZ file, remember to copy this KDZ file into LG Flash Tool 2014 folder
• Check the firmware that match with your phone version,
• The V10 is the KITKAT version
• The V20 is for the Lollipop Version
• And, you can see  a letter, that is little updates, you can download the one with the "last" letter
2. Download Driver LG: Here
3. Latest LG FlashTool : Here

#1. Guide To Flash LG JOY / KITE H220 - H221G - H222F - H222TTV

Please follow this guide carefully to flash LG JOY / KITE H220 - H221G - H222F - H22 2TTV.

1. Make sure you have download all requirement tool above
2. Then Install the drivers with your phone connected with your Computer, when it finished disconnect your LG JOY / KITE H220 - H221G - H222F - H222TTV phone from your computer.
3. Now turn your LG JOY / KITE H220 - H221G - H222F - H222TTV phone off, then click continuously on the up volume and connect your phone to your PC,
4. Now, enter your LG JOY / KITE H220 - H221G - H222F - H222TTV into download mode.  ( visit this guide or see at the end of this post)
5. Run LGFlashTool2014.exe.
6. If you cannot run LGFlashTool2014.exe, You must install Visual C++ Runtime Library, get here
7. There are two options to flash your LG JOY / KITE H220 - H221G - H222F - H222TTV.


• Normal Flash : You can select this option if you want Fl ash ROM without losing any data. Only use this when you need to fix system error.
• CSE Flash : You can choose this option when you need a fresh format. All data will be deleted. Its suitable for upgrading or downgrading ROM or simply use this when you need to back to Stock.



  LG flash tool normal flas h / CSE flash

8. Select Type: CDMA
9. PhoneMode: DIAG
10. Select KDZ file : browse your KDZ file in your drive
11. Then you can Click on Normal Flash or CSE Flash (see step 7 to decide this option)
12. Then click Start.



    LG flash tool - start

13. Then click on Clear Phone Software update registry.



    Lg flash tool - Clear Phone Software update registry.

14. No need to choose desired language, it automatically change to English as a default setting.
15. Finally you can c lick OK.
16. You must wait a minute for the LG Mobile Support tool to recognize the LG JOY / KITE H220 - H221G - H222F - H222TTV device.
17. When you wait this process, may take 5 minute the tool to recognize it.
18. The software will start the extraction on your device.
19. When the process reach 100% your LG JOY / KITE H220 - H221G - H222F - H222TTV will reboot.
20. Then, you must Unplug your LG JOY / KITE H220 - H221G - H222F - H222TTV from your computer by remove USB Cable from it.,
21. Finish,

#2. Guide To Flash LG JOY / KITE H220 - H221G - H222F - H222TTV

If #1 method is failed to flash your LG Android device, you can use this second method, flashing LG device using R&D Test Tool

Enter LG JOY / KITE H220 - H221G - H222F - H222TTV To Download Mode.

To enter LG AKA in download mode, you can follow this guide :

1. Remove batterei from your phone
2. Plug USB cable to your PC
3. Press and Hold volume UP Button, while cable plugs USB Cable from PC to your Phone
4. Then will appear white note on your LG JOY / KITE H220 - H221G - H222F - H222TTV phone, if you see this you can releasa Volume UP button.
5. Press and hold volume UP Button on your LG JOY / KITE H220 - H221G - H222F - H222TTV phone again, until you see FIRMWARE UPDATE message.
6. If your phone has been detected in your PC (to make sure, click the monitor icon beside Read Phone Information button, this action will open device manager windows. If your phon e was detected you can see this at the top)
7. Click START, and you will see dialogue box, just click OK
8. Wait for the flash process, it will run in approximately 5 minute and your LG JOY / KITE H220 - H221G - H222F - H222TTV will restart itself
9. Then your LG JOY / KITE H220 - H221G - H222F - H222TTV phone will boot up, if you can see Welcome Screen, its mean Flashing process is successfully.
10. Unplug USB cable, and finish
11. Now your LG JOY / KITE H220 - H221G - H222F - H222TTV is installed new firmware.
